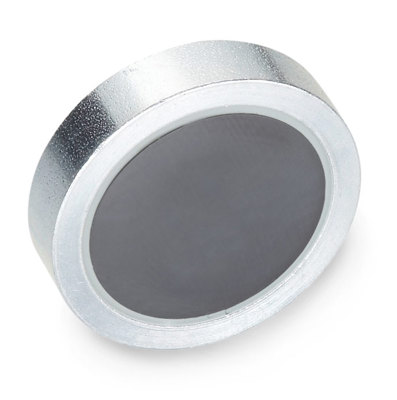

Magnet av hard ferritt, neodym eller SmCo, uten gjenge

Magnet GN50.1 av hard ferritt, neodym eller SmCo

Magnet uten avskjerming, av galvanisert stål, uten gjenge.

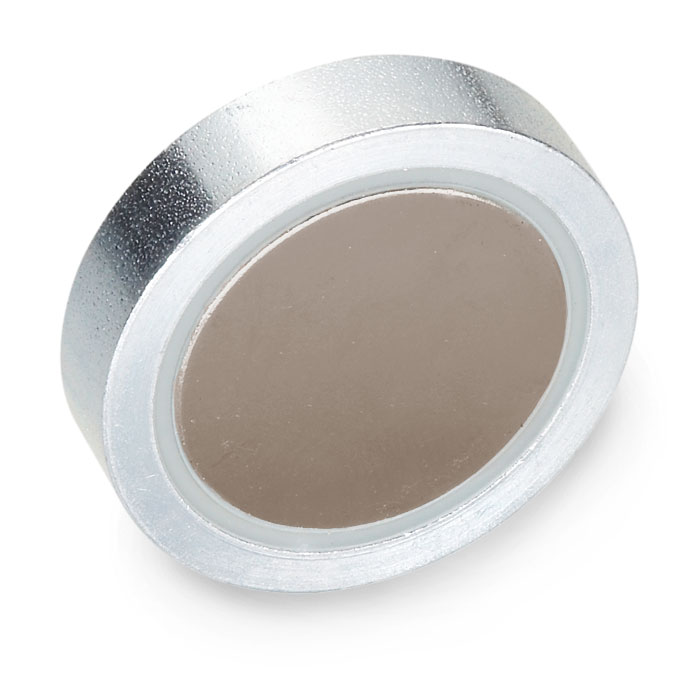

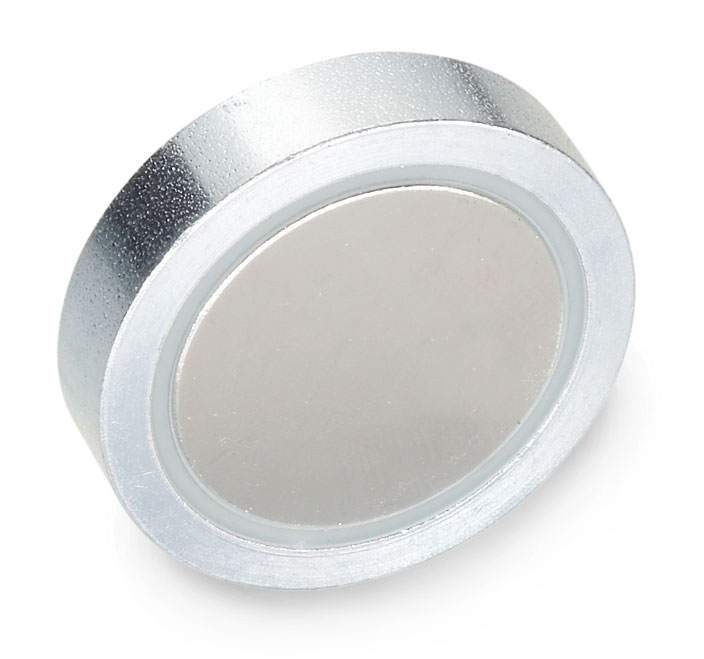

Type HF: Hard ferritt. Maksimal temperatur 200 °C. Type ND: Neodym/jern/bor. Maksimal temperatur 80 °C. Type SC: Samarium/kobolt. Maksimal temperatur 200 °C.

  • Gjelder under omstendighetene som er angitt her.

Bestillingseksempel: GN50.1-HF-32

Relaterte produkter

GN50.2
GN50.25
GN50.3

CAD-filer

Magnet med slät avskärmning
dToleranserhToleranserNominell häftkraft (N)
HFSC / NDHFSC / NDHFSCND
6-±0.14,5-±0.1--5
8-±0.14,5-±0.1-1113
10±0.1±0.14,5+0.2/-0.1±0.142025
13±0.1±0.14,5+0.2/-0.1±0.1104060
16±0.1±0.14,5+0.2/-0.1±0.1186095
20-±0.13,5-±0.1--110
20±0.1±0.16+0.2/-0.1±0.13090140
25±0.1±0.17+0.3/-0.2±0.240150200
32±0.1±0.17+0.3/-0.2±0.280220350
36+0.2/-0.1-7,7+0.3/-0.2-100--
40+0.2/-0.1-8+0.4/-0.2-125--
47+0.2/-0.1-9+0.5/-0.2-180--
50+0.2/-0.1-10+0.5/-0.2-220--
57+0.2/-0.1-10,5+0.5/-0.2-280--
63+0.3/-0.1-14+0.5/-0.2-350--
80+0.3/-0.1-18+0.5/-0.2-600--
100+0.5/-0.1-22+0.5/-0.2-900--
125+0.5/-0.1-26+0.5/-0.2-1300--
Artikkelnr.BetegnelseKr/stk. ekskl. mva. Kr/stk. inkl. mva.Kvantumsrabatt
-10%-20%
GN50.1-HF-10Magnet, hard ferritt27,60 kr34,50 kr10 st50 stKontakt oss for å bestille
GN50.1-HF-100Magnet, hard ferritt487,00 kr608,75 kr——Kontakt oss for å bestille
GN50.1-HF-125Magnet, hard ferritt1 307,00 kr1 633,75 kr——Kontakt oss for å bestille
GN50.1-HF-13Magnet, hard ferritt30,50 kr38,13 kr10 st50 stKontakt oss for å bestille
GN50.1-HF-16Magnet, hard ferritt32,30 kr40,38 kr10 st50 stKontakt oss for å bestille
GN50.1-HF-20Magnet, hard ferritt32,00 kr40,00 kr10 st50 stKontakt oss for å bestille
GN50.1-HF-25Magnet, hard ferritt34,70 kr43,38 kr10 st50 stKontakt oss for å bestille
GN50.1-HF-32Magnet, hard ferritt38,70 kr48,38 kr10 st50 stKontakt oss for å bestille
GN50.1-HF-40Magnet, hard ferritt49,20 kr61,50 kr10 st50 stKontakt oss for å bestille
GN50.1-HF-50Magnet, hard ferritt66,00 kr82,50 kr10 st50 stKontakt oss for å bestille
GN50.1-HF-63Magnet, hard ferritt117,00 kr146,25 kr10 st50 stKontakt oss for å bestille
GN50.1-HF-80Magnet, hard ferritt189,50 kr236,88 kr——Kontakt oss for å bestille
GN50.1-ND-6Magnet, neodym31,70 kr39,63 kr10 st50 stKontakt oss for å bestille
GN50.1-ND-8Magnet, neodym33,20 kr41,50 kr10 st50 stKontakt oss for å bestille
GN50.1-ND-10Magnet, neodym36,90 kr46,13 kr10 st50 stKontakt oss for å bestille
GN50.1-ND-13Magnet, neodym39,90 kr49,88 kr10 st50 stKontakt oss for å bestille
GN50.1-ND-16Magnet, neodym44,50 kr55,63 kr10 st50 stKontakt oss for å bestille
GN50.1-ND-20-6Magnet, neodym67,60 kr84,50 kr10 st50 stKontakt oss for å bestille
GN50.1-ND-25Magnet, neodym97,90 kr122,38 kr10 st50 stKontakt oss for å bestille
GN50.1-ND-32Magnet, neodym139,00 kr173,75 kr10 st50 stKontakt oss for å bestille
GN50.1-HF-36Magnet, hard ferritt50,10 kr62,63 kr10 st50 stKontakt oss for å bestille
GN50.1-HF-47Magnet, hard ferritt61,70 kr77,13 kr10 st50 stKontakt oss for å bestille
GN50.1-HF-57Magnet, hard ferritt80,10 kr100,13 kr10 st50 stKontakt oss for å bestille
GN50.1-ND-20-3,5Magnet, neodym64,10 kr80,13 kr10 st50 stKontakt oss for å bestille
GN50.1-SC-10Magnet, SmCo52,50 kr65,63 kr10 st50 stKontakt oss for å bestille
GN50.1-SC-13Magnet, SmCo64,10 kr80,13 kr10 st50 stKontakt oss for å bestille
GN50.1-SC-16Magnet, SmCo83,50 kr104,38 kr10 st50 stKontakt oss for å bestille
GN50.1-SC-20Magnet, SmCo120,50 kr150,63 kr10 st50 stKontakt oss for å bestille
GN50.1-SC-25Magnet, SmCo185,00 kr231,25 kr10 st50 stKontakt oss for å bestille
GN50.1-SC-32Magnet, SmCo266,00 kr332,50 kr10 st50 stKontakt oss for å bestille
GN50.1-SC-6Magnet, SmCo37,80 kr47,25 kr10 st50 stKontakt oss for å bestille
GN50.1-SC-8Magnet, SmCo42,40 kr53,00 kr10 st50 stKontakt oss for å bestille
